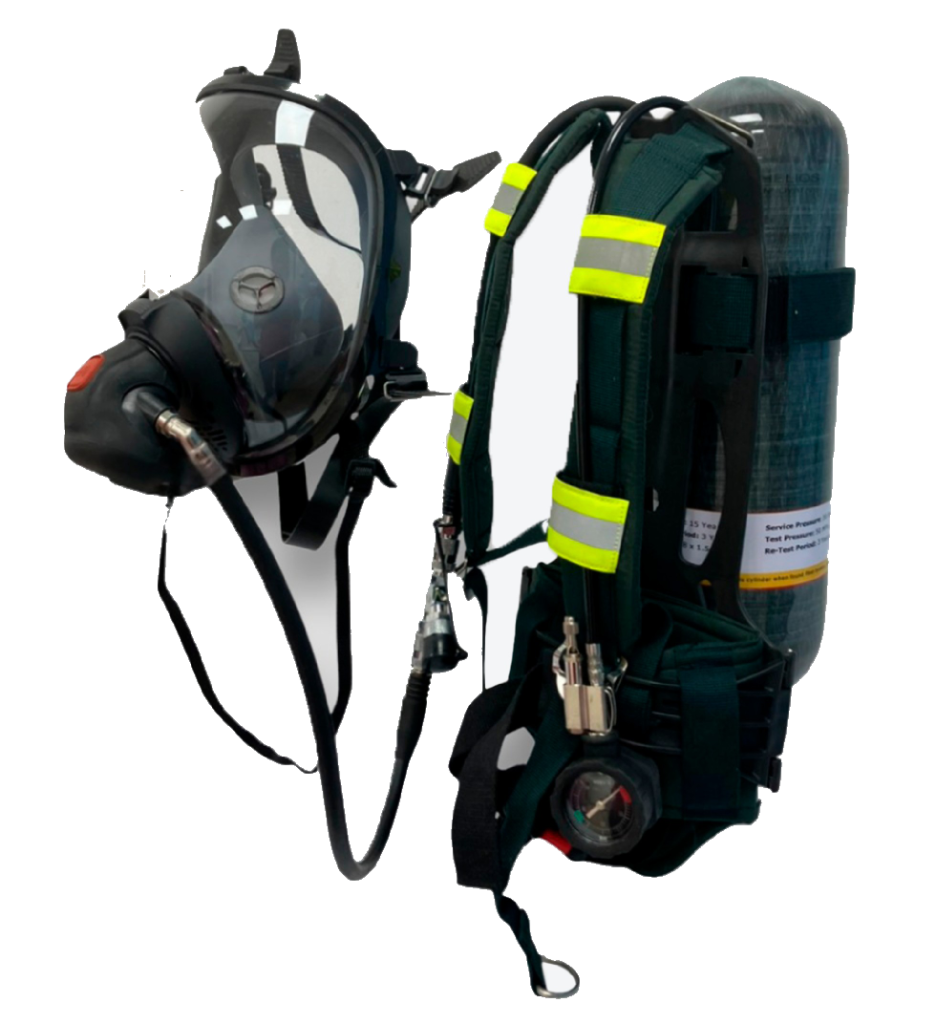

SELF-CONTAINED BREATHING APPARATUS (SCBA)
AERO-FIRE/6100
Positive-pressure SCBA for firefighting and high-heat operations
Full respiratory protection combined with resistance to high temperatures and direct flame, with integrated electronic monitoring and Head-Up Display.
- EN 137:2006 Certified · CE
- −30 °C to +60 °C Operating range
- Up to 75 min Nominal service time*
OVERVIEW
Engineered for extreme heat and direct flame
The AERO-FIRE/6100 is a positive-pressure self-contained breathing apparatus designed for professional firefighting, where full respiratory protection must be combined with resistance to high temperatures and direct flame.
All textile components are made of high-performance aramid fibers, inherently flame-resistant and built to withstand extreme heat, abrasion and severe operating conditions.
An electronic monitoring unit and a Head-Up Display (HUD) keep the wearer informed at all times, with reliable performance across an operating temperature range of −30 °C to +60 °C.
- Firefighting
- Industrial fire brigades
- Oil & Gas
- Rescue operations
TECHNICAL SPECIFICATIONS
Specifications
| 3 L | 6.8 L | 9 L | |
|---|---|---|---|
| Breathing gas | Compressed breathing air | ||
| Working pressure | 30 MPa (300 bar) | ||
| Free air volume | ≈ 900 L | ≈ 2,040 L | ≈ 2,700 L |
| Rated duration* | 30 min | 60 min | 75 min |
| Cylinder weight | 2.2 kg | 3.8 kg | 4.9 kg |
| Total weight (9 L cylinder) | ≤ 15 kg | ||
| Operating temperature | −30 °C to +60 °C | ||
| Standard | EN 137:2006 · CE marked | ||
| Equipment | |
|---|---|
| Aramid-fiber harness | Standard |
| Electronic monitoring | Standard |
| Head-Up Display | Standard |
| RIC-UAC | Optional |
| PASS alarm | Optional |
EN 137:2006
Certified · CE marked
SYSTEM COMPONENTS
Inside the AERO-FIRE/6100

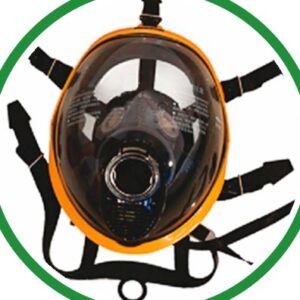

Full-Face Mask
- Flame-resistant aramid-fiber head harness
- Wide field of vision, dual sealing edge
- 5-point harness, quick-release buckles
- Anti-fog visor, 92% light transmission
- Low dead-space design minimizes CO2 rebreathing

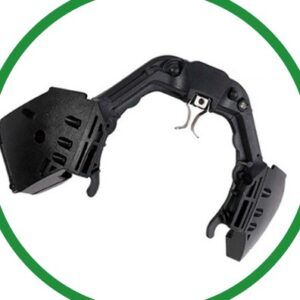

Head-Up Display (HUD)
- Indicators positioned just below the eyes
- Wireless link to the monitoring unit
- Ultra-low power: battery life up to one year
- Shows cylinder pressure status

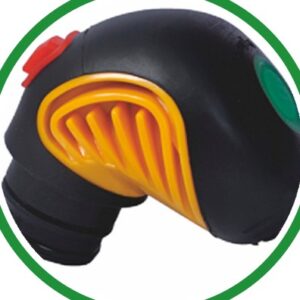

Positive-Pressure Demand Valve
- Plug-in connection with 360° rotation
- Compact and lightweight
- Air supply above 500 L/min
- Maintains constant positive pressure in the mask

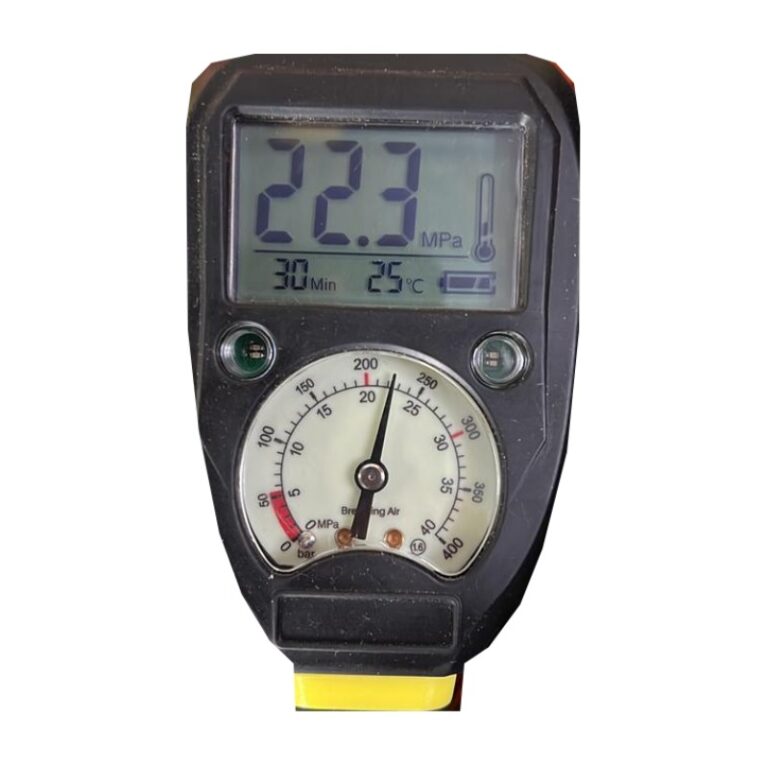

Electronic Monitoring Unit
- Real-time cylinder pressure and remaining air time
- Automatic warning at 5–6 MPa
- Continuous 90 dB acoustic and visual signal
- PASS function (optional): automatic distress signal when the wearer is motionless

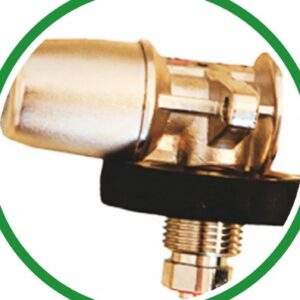

First-Stage Pressure Reducer
- Simple, compact design
- Output flow ≥ 1,000 L/min
- Relief valve releases excess pressure above 1.1 MPa

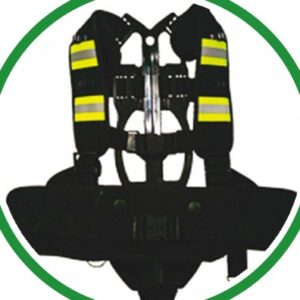

Backplate & Harness
- High-quality impact-resistant plastics
- Dual-layer lumbar support
- Inherently flame-resistant aramid-fiber harness

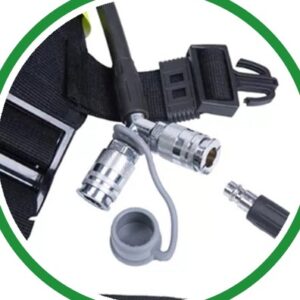

“Y” Connector
- Connects a second full-face mask
- or an emergency air line
- EN 137:2006Certified · CE marked
- −30 °C to +60 °COperating temperature range
- Up to 75 minNominal service time with 9 L cylinder
